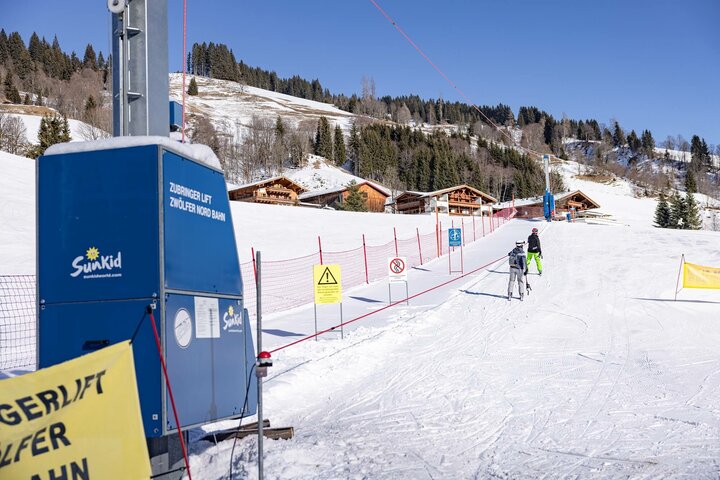

The Sunkid SwissCord is used as a beginner’s practice lift, connecting lift, feeder lift, and as a return lift. It is characterised above all by its vertical rope return. The drive and counter station facilities are installed in a largely closed box which can be adjusted in height by 4.7 m on a vertical square tube by means of a motor. This makes it possible to easily adjust the tow rope height to the respective snow height of the route or the passengers (adults/children). This adjustment also enables the lift line to be prepared in a single step using a snow groomer.
Stepless speed adjustment with the help of the switching and frequency converter system
Motor installation either in the upper or lower station
Approx. 3 to 6 m³ of foundations are required per station, depending on the subsoil and the load
Installation of the Sunkid SwissCord takes approx. 0.5 to 1 day, while dismantling only takes approx. 2 to 3 hours
Approval is possible without own supervisory staff
|Drive power||3-11 KW|
|Conveying capacity||Max. 720 pers/h|
|Conveyor rope||Atlas synthetic rope (Ø 16 mm) with rubber handles|
|Infinitely variable speed adjustment||0 – 2 m/sec|
|Max. lift length||350 m|
|Max. gradient||25% (beginners max. 15%)|
|Options||stations height-adjustable up to 3,9 m|
|Construction||steel construction hot-dip galvanised|
